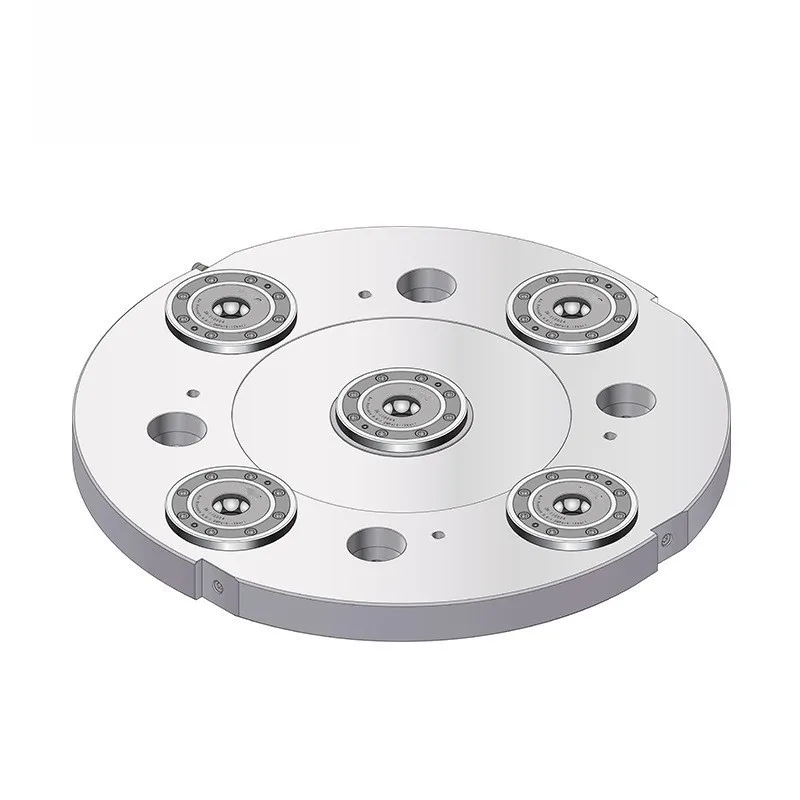

Five-Station Zero-Point Chuck – High Precision Positioning, Strong Clamping
The Five-Station Zero-Point Chuck is a product that offers high precision positioning and strong clamping. It is suitable for dual pallets and can be directly mounted on the machine table. It can be customized according to customer machine requirements.
- Download product files
Application
The Five-Station Zero-Point Chuck is a product that offers high precision positioning and strong clamping. The base plate is made of non-hardened steel material. The individual chuck unlocks at a pressure of 0.6MPa, and when pressurized, the clamping force can reach 17000N. The chuck exhibits excellent repeatability with a positioning accuracy of less than 0.005mm. It features a side-opening connection and is controlled pneumatically. The chuck is suitable for dual pallets and can be directly mounted on the machine table. Additionally, it can be customized according to customer machine requirements. The Five-Station Zero-Point Chuck ensures accurate positioning and secure clamping of the workpiece through its exceptional positioning precision and strong clamping capability, meeting the requirements of high precision machining. It is a reliable and efficient fixture system that provides essential workpiece clamping solutions for dual pallet machining.
