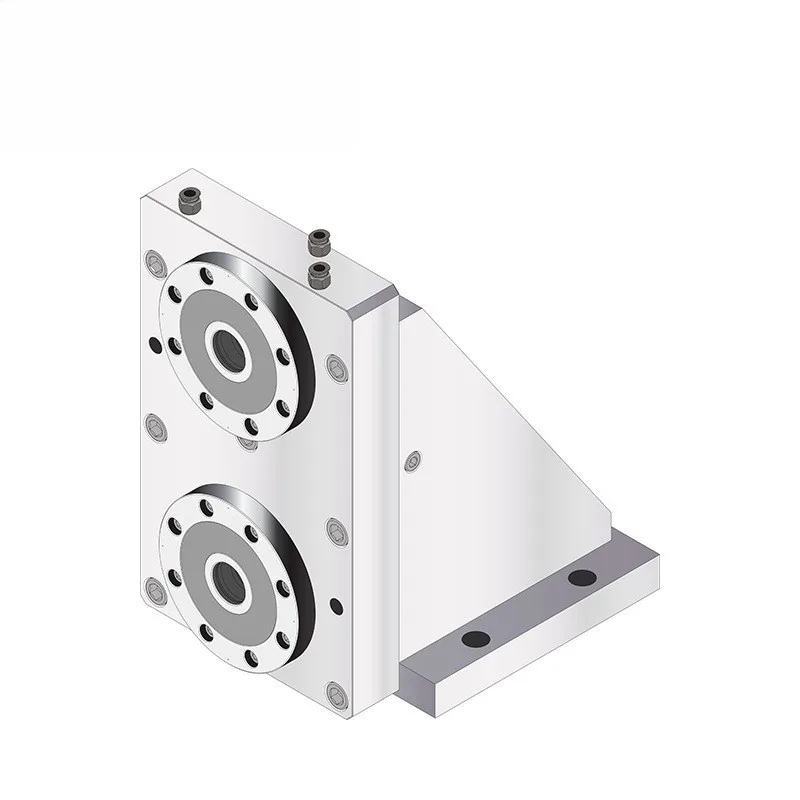

Dual-Station Zero-Point Right Angle Chuck – High Clamping Force, Precise Positioning

The Dual-Station Zero-Point Right Angle Chuck is a product that offers high clamping force and precise positioning. The base plate is made of non-hardened steel material. The individual chuck unlocks at a pressure of 0.6MPa, and when pressurized, the clamping force can reach 17000N. The chuck exhibits excellent repeatability with a positioning accuracy of less than 0.005mm. It features a side-opening connection and is controlled pneumatically. The chuck is suitable for dual pallets and can be directly mounted on the machine table. Whether used for milling, drilling, or other machining operations, the chuck provides high clamping force and precise positioning, ensuring workpiece stability and machining accuracy. The Dual-Station Zero-Point Right Angle Chuck is an efficient, reliable, and user-friendly fixture system that provides essential workpiece clamping solutions for machine tool machining.
